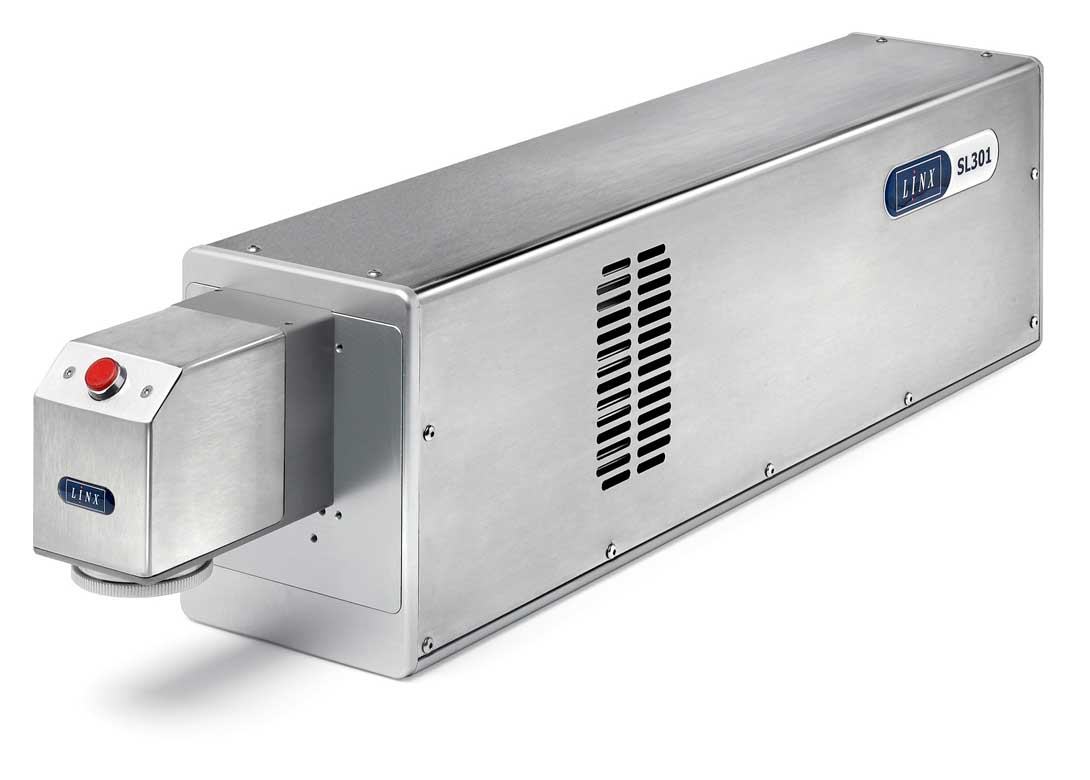

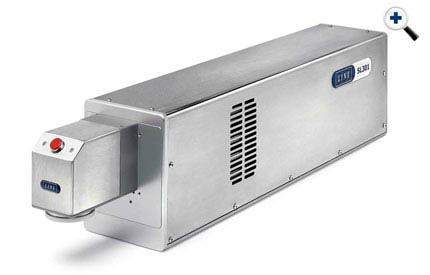

Linx SL301 Industrial LASER coder

Do you need a laser coder that delivers improved productivity, low running costs and low maintenance, with no compromise on code quality? If so, why not switch to the Linx SL301 30W industrial laser coder?
View SL301 LASER Coder video

Linx SL301 Industrial LASER Coder Features

  • 30 watt LASER with no compromise on code quality!
  • Fastest LASER coder on the market!
  • Wide range of marking heads and lens options - versatile for many types of applications!
  • 24/7 operation without the need for manual intervention.
  • Performance
  • General Features
  • Programming
  • Input/Output
  • Downloads/PDFs
  • Dimensionals
  • Line speed*: (300m/min)
  • Standard model SL 301: (SHC60 Marking head, 95mm lens)
  • Spot size/Mark field/Marking distance: (0.31mm/66x66mm/96mm)
  • Other lens and head options (range)
    • Spot size: (0.11–1.65mm)
    • Mark field: (29x36–295x407mm)
    • Marking distance: (67–385mm)
  • No. lines of text: (Only limited by character size and mark field size)
  • Print Orientation: (0-360')

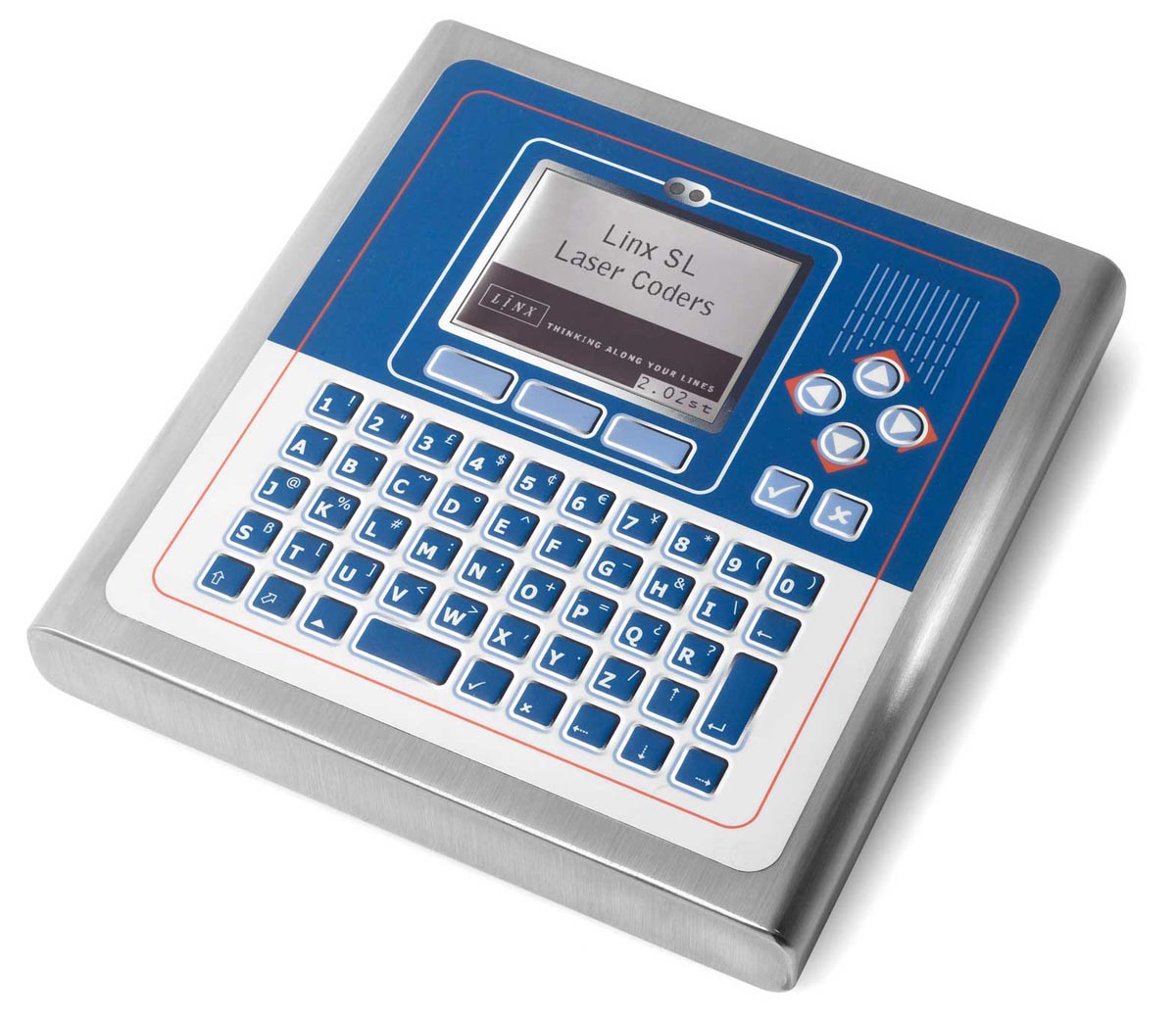

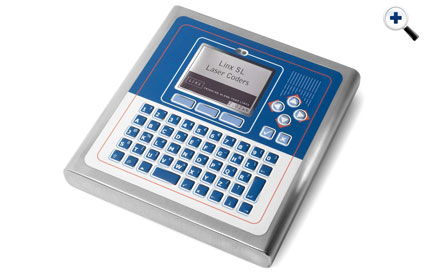

  • Set-up/user interface: (Via HCU or PC)
  • PC user interface application: (Windows XP/Vista)
  • Multiple operating languages: (English, German, Spanish, French, Italian, Portuguese, Dutch, Polish, Russian)
  • Comprehensive systems diagnostics including log function
  • Variable pulse frequency: (50 to 25,000 Hz)
  • Memory storage (MMC): (256MB)
  • Password protection: (3 protected levels)
  • Dual galvo character generation
  • Automatic safety shutter

  • Physical characteristics
  • Material: (Stainless steel covers, anodized aluminium chassis)
  • I P Rating - Marking unit/supply unit: (IP 54 or IP 65)
  • Weight - Marking unit/supply: (unit 21.4kg/12kg)
  • Conduit length: (3m- standard, 5m-optional)

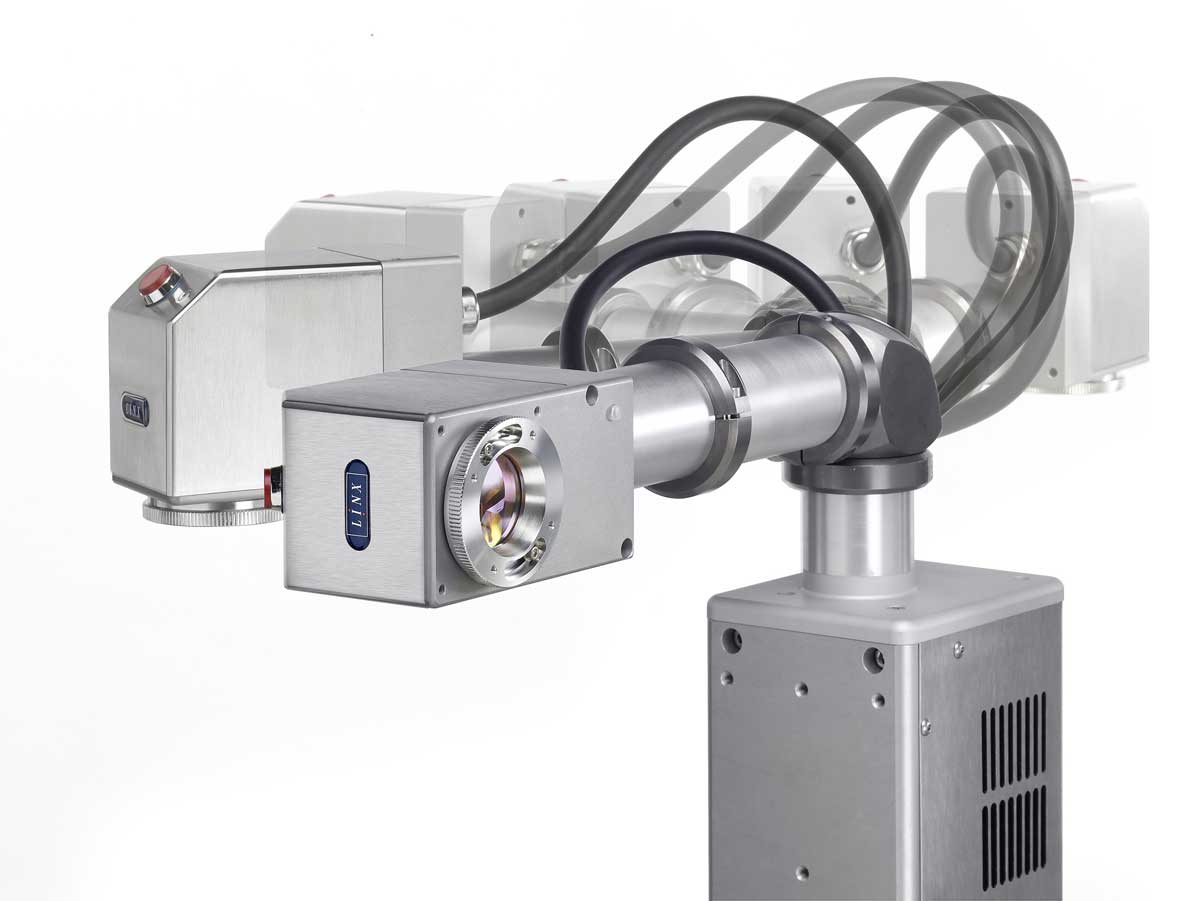

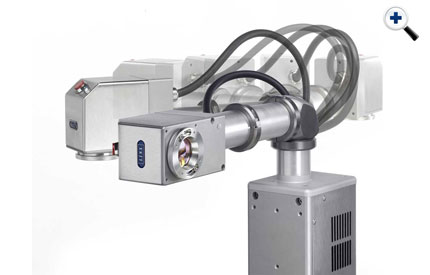

  • Head options: (SHC60- standard spot , SHC100- small spot , SHC120 -micro spot)
  • Head mounting kits: (BEU - Beam Extension Unit, BTU - Beam Turning Unit, straight shooter)
  • Cooling IP 54 Standard: (Air cooled)
  • Cooling IP 65 kit option: (Blower Unit - see below)
  • Supply voltage/frequency: (Auto selection range 100 to 240V)
  • Maximum power consumption: (0.7kVA)

  • External Blower Unit (IP65 option)
  • Part number 230V Blower: (SLAD350 – AV/D – 230V)
  • Part number 110V Blower: (SLAD350 – AV/D – 110V)
  • Supply voltage/frequency: (Auto selection range 115 to 230V)
  • Air flow capacity: (400m3 / hr)
  • Ambient Temperature: (+5°C to +40°C)
  • Weight: (15kg)
  • Character type: (Vector fonts)
  • Available fonts: (9 System vector fonts, OTF, TTF,PFA,PFB and SVG fonts, Optional customized fonts)
  • Real time with offset: (Yes - hh:mm:ss)
  • Date stamp with offset
  • Julian date
  • Custom date and time formats
  • Shift code with time increment
  • Increment/decrement: (batch count)
  • Unit measurement: (imperial and metric)
  • Last code used
  • Graphics edit and download capability: (Using LinxDraw Software)
  • Job control
  • Job select: (256 jobs)
  • Bar codes: (BC25, BC25I, BC39, BC39E, BC93, EAN 8, EAN 13, BC128, EAN 128, Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP)
  • Data matrix 2D codes: (ECC000, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR)
  • Circular text
  • Interface ports: (1 detector, 1 encoder, 1 RS232 - option; 1 External RJ45 Ethernet Port, 1 Internal RJ45 Ethernet Port - option)
  • Computer interface: (Ethernet)
  • Job select
  • Good mark output
  • Bad mark output
  • Remote control
  • Remote update: (RS232)
  • Auto start up

  • Laser details
  • Laser type: (Sealed RF excited CO 2)
  • Max. laser output-10.6μm: (30W)
  • Life-average: (45,000 hrs)
  • Wave-length: (10.6μm or 9.3μm)
  • Laser tube warranty: (2 years)
    K100 Spec sheet
  • Linx SL301 Industrial LASER Coder Spec Sheet

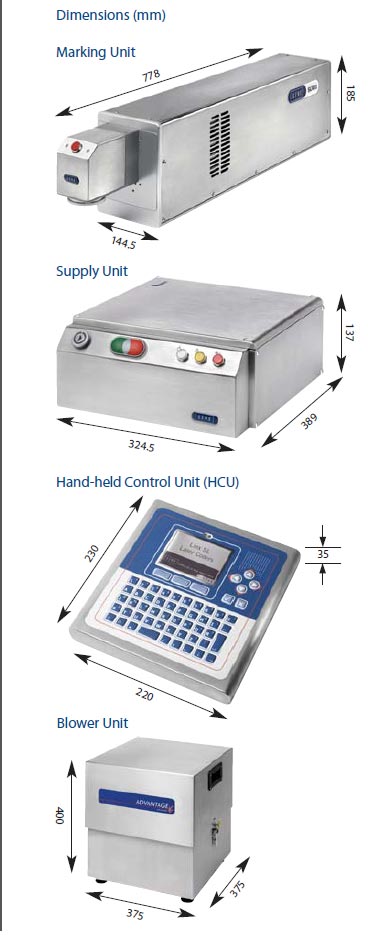

    Linx SL 301 industrial LASER coder dimensional drawing
  • Linx SL301 Industrial LASER Coder Dimensional Drawings
