Continuous Inkjet Coder - Linx 7900

Are you paying more than you should on additional features for your current coding equipment? The Linx 7900 continuous inkjet range of printers offer advanced additional features as standard, providing value for money with no hidden costs.

The Linx 7900 industrial inkjet coder is an advanced printing machine which can be used in many different types of industries and for a wide range of coding requirements. Some examples of inkjet coding applications are as follows: printing lot or date codes onto high speed bottling lines, coding longer messages with more detailed information onto continuous pipe or extrusion lines, printing mutiple lines onto products at higher speeds and printing lighter colored pigmented inks onto opaque substrates.

The Linx 7900 inkjet coder is available as a pigmented inkjet coder and can be configured for high speed printing.

See the gallery below for more detail.
Linx 5900 continuous inkjet coder

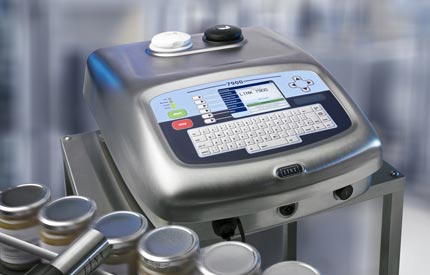

Linx 7900: Large colour user interface and prompted fields for quick and easy message creation. IP55-rated with a curved stainless steel enclosure.
Linx 7900: Large colour user interface and prompted fields for quick and easy message creation. IP55-rated with a curved stainless steel enclosure.

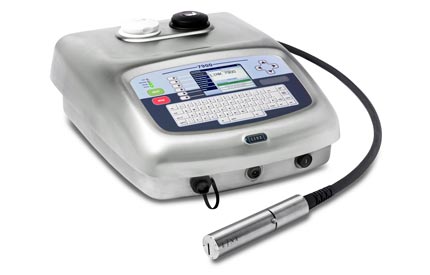

Sealed Printhead: The unique hermetically sealed printhead is adjustment free, increasing productivity and eliminating costly service calls. Predictable service intervals of up to 9,000 hours.
Full Keyboard: Integral QWERTY keyboard (full size) and 1/4 VGA back-lit colour display, printer status indicators (4 LEDs). Dynamic message and logo storage capacity (up to 1000 typical messages)
Traversing System:The 7900 can be incorporated into a traversing system to quickly and efficiently code across multiple items.

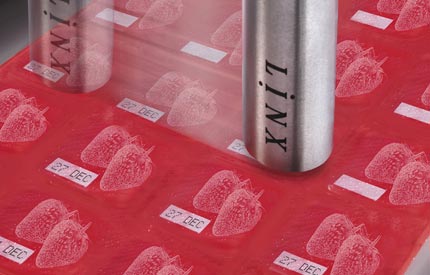

Various inks available: Range of inks available, including low evaporation, low taint, and a wide spectrum of colors - thus allowing to print on many substrates.
Excellent print tolerance: Even when surfaces are not flat or still (eg. moving bottles), and are 10mm or more away from the printhead

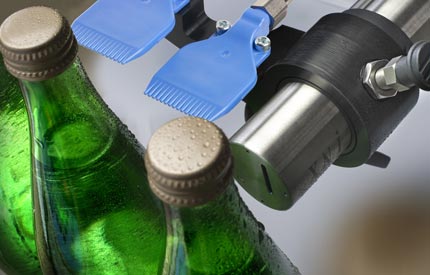

Air knife system: Integrated printhead and air knife system ensures that the print area on the bottle is dried prior to printing. - thus printing always occurs on the dried area, keeping your code quality consistently high.

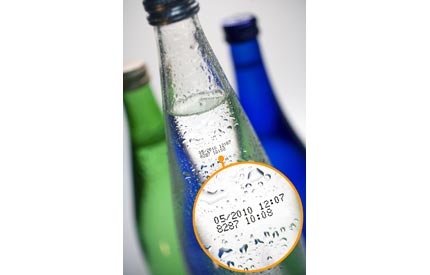

Quality inks: Linx Black bottling ink 1058 penetrates condensation and provides good print quality and permanence right up to the point of its removal in caustic bottle washers
Various ink colors available: The CJ400 inkjet coder can use many different ink types and colors

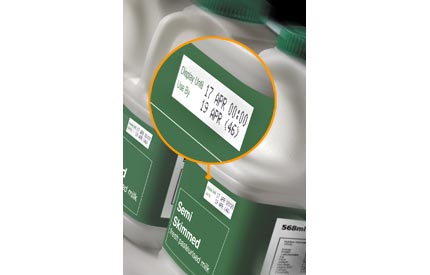

Date and lot coding: The CJ400 inkjet coder is capable of printing 3 lines of information such as date coding, lot number coding, time data and text onto various types of substrates.
Small, compact and rigid design: Only 17.8 inches wide by 12.75 inches in depth by 14.3 inches high
UV Coding: Discreet or UV coding inks available for industries such as wine bottle coding or other discreet code applications
View Linx 7900 Video

Linx 7900 Continous Inkjet Printer Features

  • Optional Linx Insight® enables remote monitoring from a smart phone, plus message download.
  • QuickSwitch® software allows simple and accurate code changes using a barcode scanner
  • USB port means easy transfer of messages between printers.
  • Intelligent ink system enables up to 9000 hours* between scheduled service intervals
  • Performance
  • General Features
  • Programming
  • Input/Output
  • Downloads/PDFs
  • Dimensionals
Printhead Micro Mini Ultima* Midi* Midi EC Ultima plus Midi plus
Lines of print supported 1,2,3 or 4 1 or 2 1,2 or 3 1,2,3,4 or 5 1,2 or 3 1,2 or 3 1,2,3,4 or 5
Character height range 1.1 to 8.0 mm 1.4 to 6.7 mm 1.8 to 7.8 mm 1.8 to 12 mm 1.8 to 10.5 mm 2.1 to 9.5 mm 2.1 to 13.8 mm
Maximum speed: single line print, wide pitch, High Performance print option 8.41 m/s 6.83 m/s 6.25 m/s 6.28 m/s 6.28 m/s 7.28 m/s 2.10 m/s
Maximum number of characters per second 2222 2667 2222 1905 1905 2133 821
High Performance (HP) print option Option Option Option Option Option Option
Linx 7900 Option Option Standard Option   Option Option
Linx 7900 Spectrum (for pigmented inks)           Standard Option
Linx 7900 Solver (for lowest solvent consumption) Option Option Standard Option
Linx 7900 Swift (for high speed lines)   Standard
Linx 7900FG (for Food Grade inks)         Standard
Linx 7900BC (for wet bottle coding)     Standard Option

*For certain inks, Ultima A and Midi A printheads replace Ultima and Midi printheads, to provide reliable performance. Print speeds are unchanged.
  • Single button startup and shutdown
  • Simple menu-driven WYSIWYG message creation and editing
  • SureFill® mistake-proof refill system and on-screen fluid level indicators
  • Integral QWERTY keyboard (full size) and 1/4 VGA back-lit colour display, printer status indicators (4 LEDs)
  • USB port for copy and back up of message and printer settings
  • FullFlush® automatic printhead and conduit flush
  • Saving remote field data over a power cycle
  • Linx Insight® remote printer control and status view
  • Auto power-off
  • Automatic diagnostics
  • Multiple operator languages (user selectable)
  • Dynamically adjusted service interval up to 6000 hours (dependent on ink type and environment)
  • Password-protected functions
  • Dynamic message and logo storage capacity (up to 1000 typical messages)
  • Prompted fields

  • Physical Characteristics
  • Base and enclosure: (Stainless steel)
  • IP55 environmental protection rating**: (GS, CE, GOST R, NRTL, FCC) - not available for 7900 Spectrum
  • IP65 environmental protection rating**: (standard for 7900 Spectrum, not available with 7900FG printers)
  • Mounting options: (Bench or console)
  • Operating temperature range: 5 – 45°C (FG: 0 – 40°C)
  • Humidity range -r.h., non-condensing: (90% max)
  • Power supply: (100-230V, 50/60Hz)
  • Power consumption: (60W - typical when printing - excluding FG and Spectrum)
  • Power rating: (200W)
  • Weight: (21kg - Spectrum and FG, 24kg)

    Programming and printing facilities
  • Fixed and variable text
  • Upper and lower case characters
  • Graphics/logo printing
  • Logo creation and editing, on-screen
  • QuickSwitch® message selection and editing using bar code scanner
  • Bar codes EAN 8, EAN 13, 2 of 5, ITF, Code 39, Code 128, UPC-A, GS1 128 linear barcode
  • Data Matrix 2D codes
  • Bold factor (up to 10 times)
  • Height, width and delay functions for easy code sizing and positioning
  • Standard and user-definable formats for shift coding
  • 7900FG: Egg coder configuration matches service interval to flock life, and provides reliable operation in barn environments
  • 7900 Spectrum: Inverse Image barcodes and text e.g. white on black
  • Remote communications interface
  • Real-time clock functions
  • Automatic date forward function
  • Batch coding and counting
  • Sequential numbering and messages
  • Dynamic reverse and invert printing for traversing lines
  • Rotated character (‘tower’) printing
  • Message creation/editing whilst printing
  • Flexible print trigger options
  • LogoJet PC-based message and logo creation software - optional
  • 7900 Swift: narrow fonts for coding onto small print areas
  • 7900 Spectrum: programmable pre-set ink mix times

    Connections/Interfacing for
  • Shaft encoder
  • Primary and secondary product detectors
  • External single stage alarm output
  • USB
  • RS232
  • Ethernet
  • External multi-stage alarm output - optional
  • Parallel I/O - optional
  • Multiple printer triggering from single product detector/shaft encoder - optional
  • Volt-free contact alarm connection (e.g. for use with external mains-driven alarm) - optional

  • Printhead Options
  • 2m conduit
  • 4m conduit (not available with Solver or FG printers) - optional
  • 90° printhead configuration - optional
  • Positive air purge to printhead - optional
  • Cutaway printhead cover tube - optional
  • Magnetic shielded cover tube - optional
  • Midi Short Reach Right Angled (SRRA) printhead (for 7900, Solver), length 130mm - optional

  • Ink Range Linx 7900 Linx 7900 Spectrum Linx 7900 Solver Linx 7900 Swift Linx 7900BC Linx 7900FG
    Linx MEK base (dye-based/soft pigmented) Standard Standard
    (soft pigmented)
    Standard Standard
    (1240, 1405)
    Standard
    (1058)

    Linx mixed base Standard   Standard
    Linx ethanol base Standard
    Linx MEK base High Opacity pigmented inks   Standard
    Linx Food Grade inks           Standard
    Linx 7900 Continous Inkjet Printer Spec Sheet
  • Linx 7900 Continous Inkjet Printer Spec Sheet
    Linx 5900 continuous inket printer dimensional drawing
  • Linx 5900 Continous Inkjet Printer dimensional drawing
