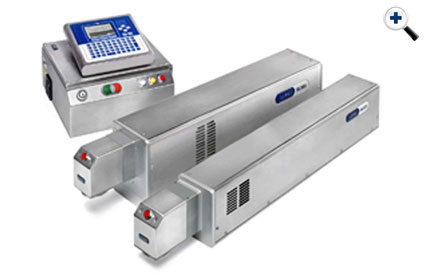

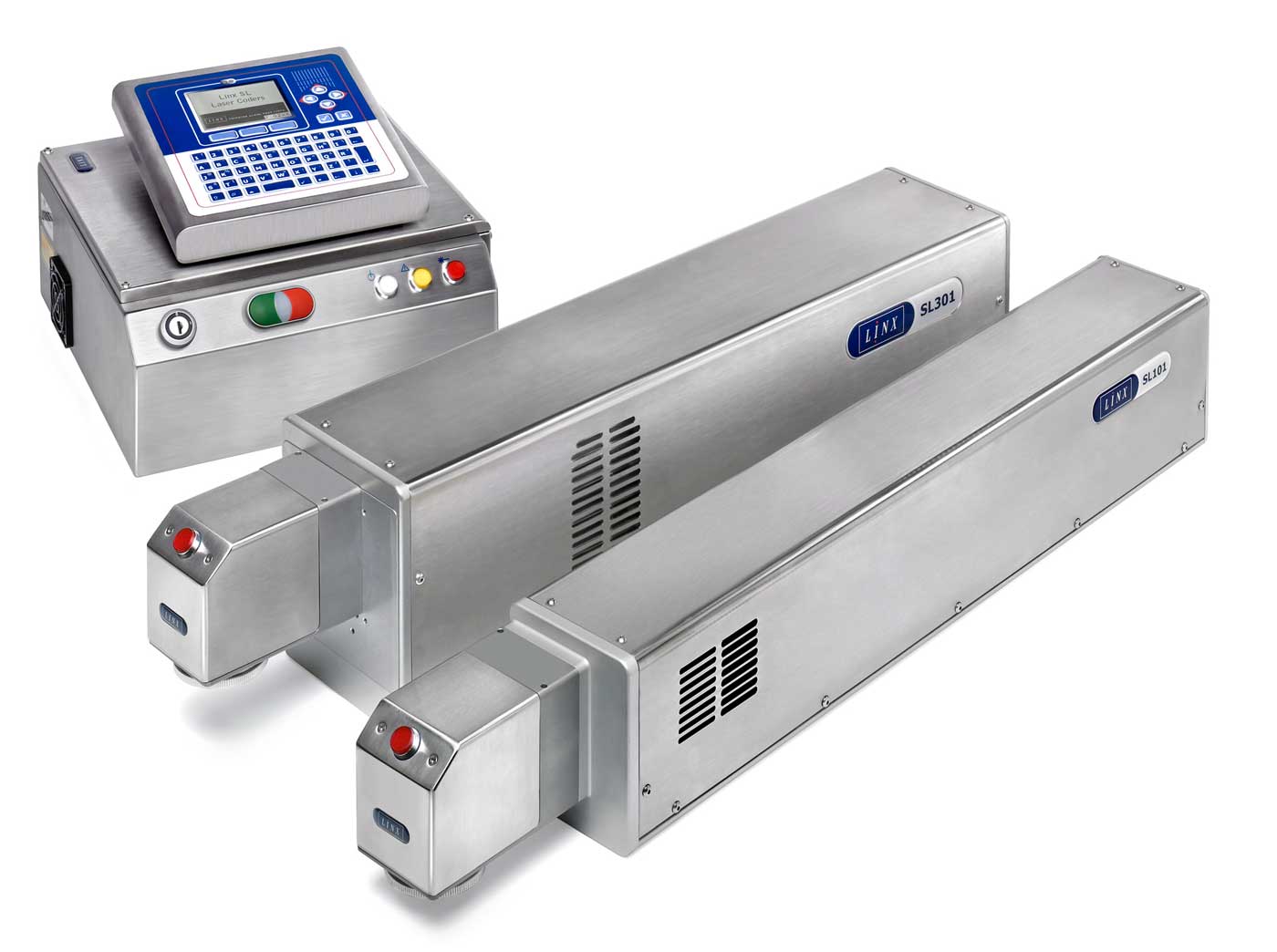

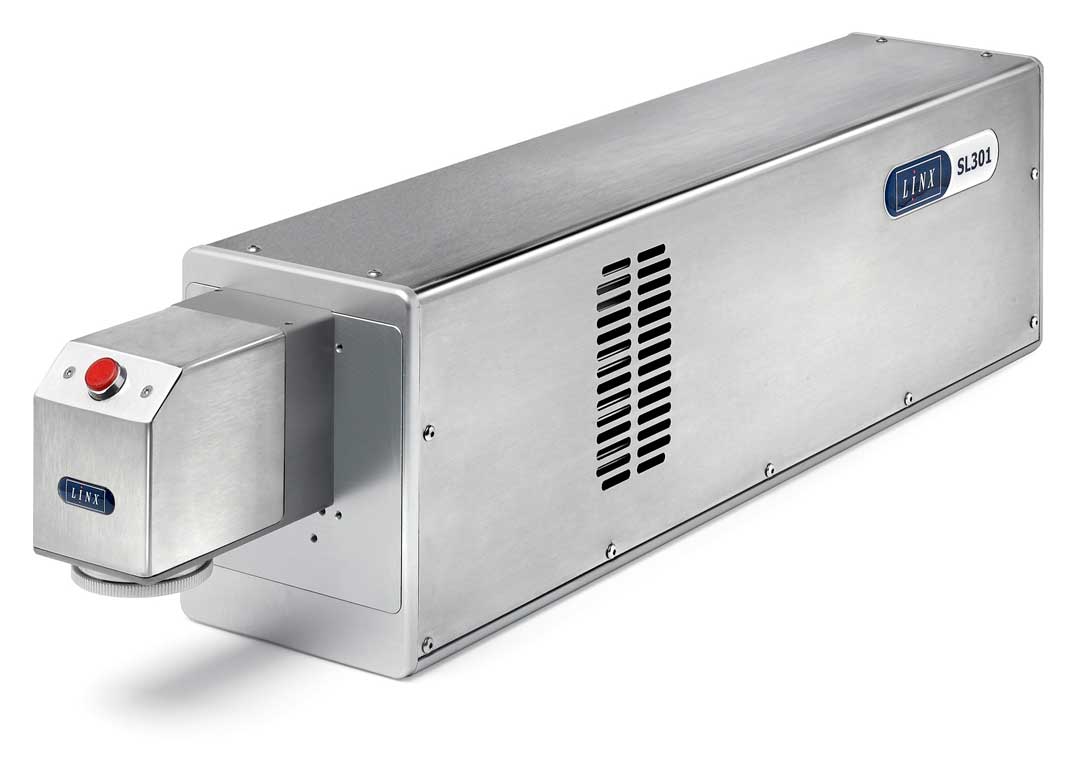

Linx SL101 Industrial LASER coder

How much time and money are you wasting with your current coding system? Maybe it’s time for a change. The economical Linx SL101 10W laser marking system has been specifically designed to meet a wide range of coding requirements.
View SL101 LASER Coder video

Linx SL101 Industrial LASER Coder Features

  • A tube life of 45,000 hours – the longest tube life on the market, greatly reduces overall running costs
  • Service intervals typically twice that of the industry standard, due to the laser’s design which makes it very reliable in even the most demanding factory environments
  • Does not require expensive factory air for cooling unlike many alternative laser coders
  • IP54 rating – maximum reliability and uptime in challenging environments
  • 24/7 operation without the need for manual intervention
  • Performance
  • General Features
  • Programming
  • Input/Output
  • Downloads/PDFs
  • Dimensionals
  • Line speed*: (110m/min)
  • Standard model SL101: (SHC60 Marking head, 95mm lens)
  • Spot size/Mark field/Marking distance: (0.27mm/66x66mm/96mm)
  • Other lens and head options (range)
    • Spot size: (0.09–1.12mm)
    • Mark field: (29x36–295x407mm)
    • Marking distance: (67–385mm)
  • No. lines of text: (Only limited by character size and mark field size)
  • Character height: (Up to mark field size)
  • Print orientation: (0-360°)

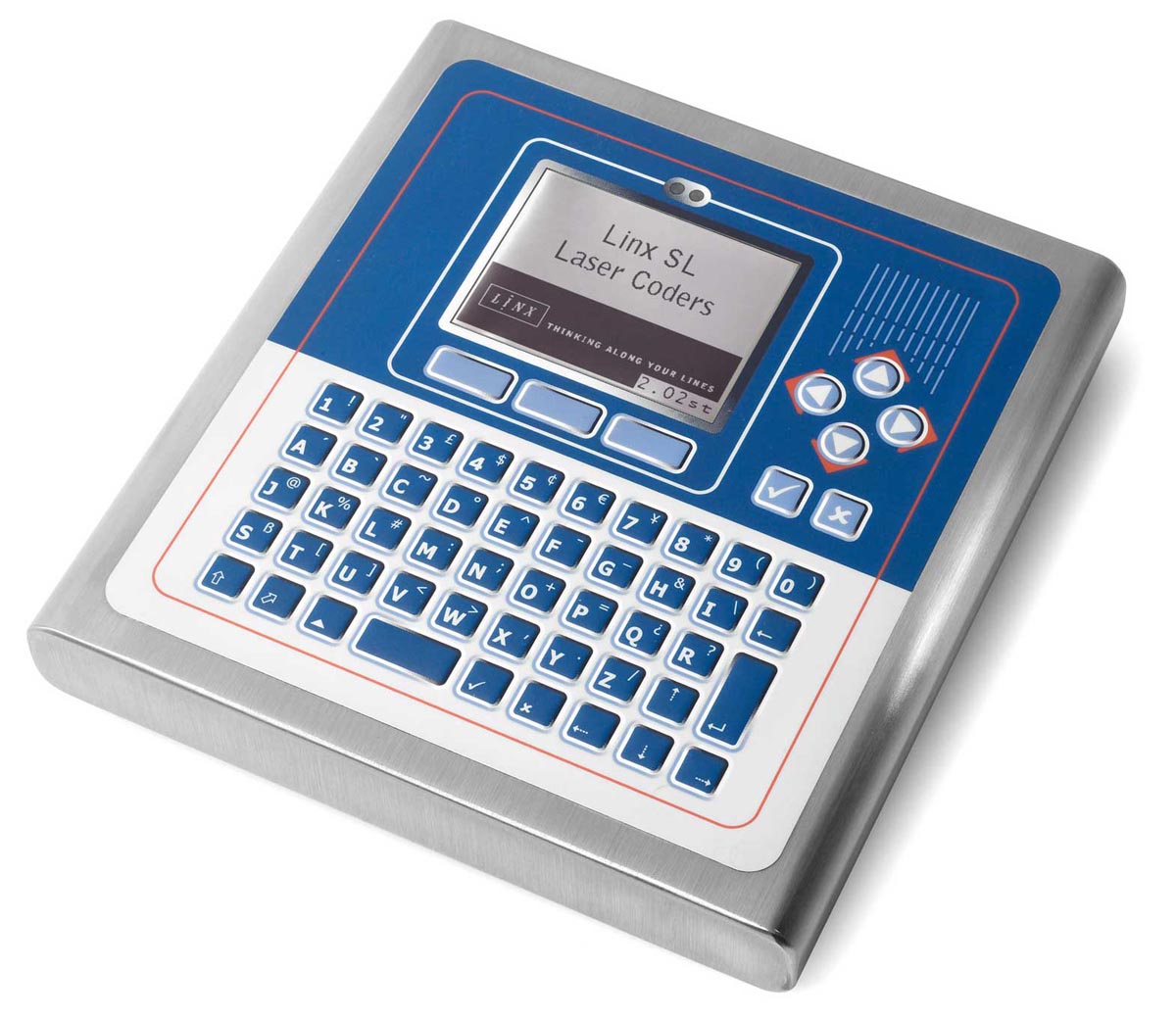

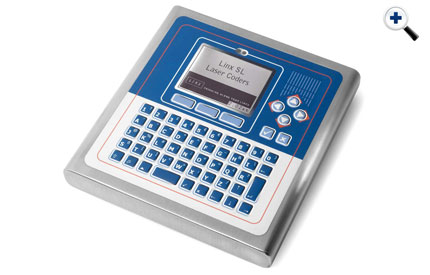

  • Set-up/user interface: (Via HCU or PC)
  • PC user interface application: (Windows XP/Vista)
  • Multiple operating languages: (English, German, Spanish, French, Italian, Portuguese, Dutch, Polish, Russian)
  • Comprehensive systems diagnostics including log function
  • Variable pulse frequency: (50 to 20,000 Hz)
  • Memory storage -MMC: (256MB)
  • Password protection: (3 protected levels)
  • Dual galvo character generation
  • Automatic safety shutter

    • Physical characteristics
  • Material: (Stainless steel covers, anodized aluminium chassis)
  • Weight-Marking unit/supply unit: (14.4kg/12kg)
  • Conduit length: (3m - standard, 5m - optional)
  • Head options: (SHC60-standard spot , SHC100-small spot , SHC120-micro spot)

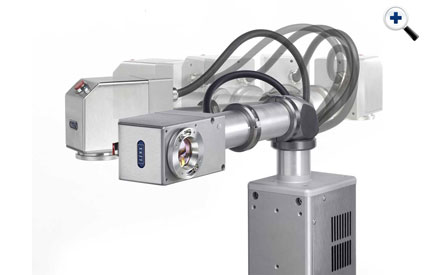

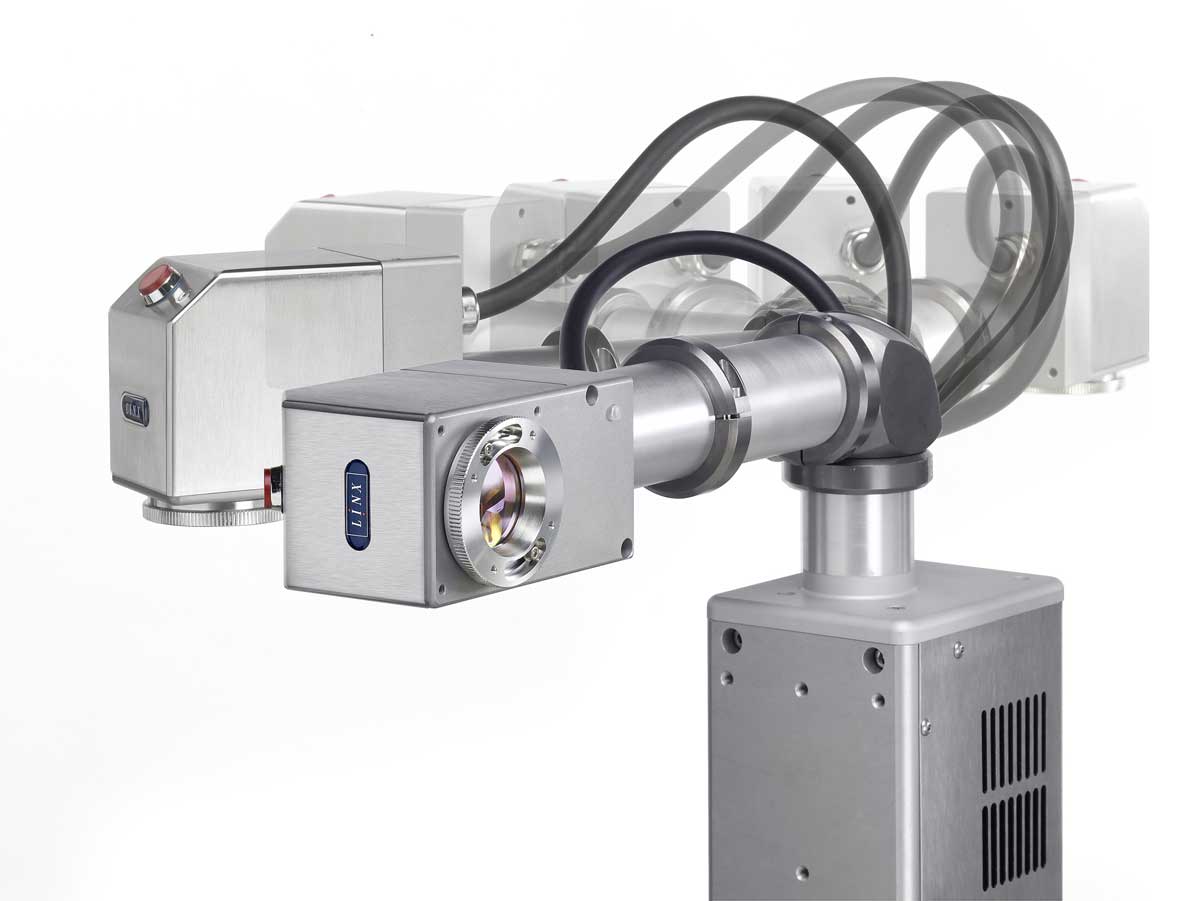

  • Head mounting kits: (BEU - Beam Extension Unit, BTU - Beam Turning Unit, straight shooter)
  • Cooling I P 54 standard: (Air cooled)
  • Supply voltage/frequency: (Auto selection range 100 to 240V)
  • Maximum power consumption: (0.4kVA)
  • Character type: (Vector fonts)
  • Available fonts: (9 System vector fonts, OTF, TTF,PFA,PFB and SVG fonts, Optional customized fonts)
  • Real time with offset: (Yes - hh:mm:ss)
  • Date stamp with offset
  • Julian date
  • Custom date and time formats
  • Shift code with time increment
  • Increment/decrement (batch count)
  • Unit measurement (imperial and metric)
  • Last code used
  • Graphics edit and download capability: (Using LinxDraw Software)
  • Job control
  • Job select: (256 jobs)
  • Bar codes: (BC25, BC25I, BC39, BC39E, BC93, EAN 8, EAN 13, BC128, EAN 128, Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP)
  • Data matrix 2D codes: (ECC000, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR)
  • Circular text
  • Interface ports: (1 detector, 1 encoder, 1 RS232 - option, 1 External RJ45 Ethernet Port, 1 Internal RJ45 Ethernet Port - option)
  • Computer interface: (Ethernet)
  • Job select
  • Good mark output
  • Bad mark output
  • Remote control
  • Remote update: (RS232)
  • Auto start up

    • Laser details
  • Laser type: (Sealed RF excited CO2)
  • Max. laser output - 10.6μm: (10W)
  • Life - average: 45,000hrs
  • Wave-length: (10.6μm or 9.3μm)
  • Laser tube warranty: (2 years)
    Linx SL101 Spec Sheet
  • Linx SL101 Industrial LASER Coder Spec Sheet

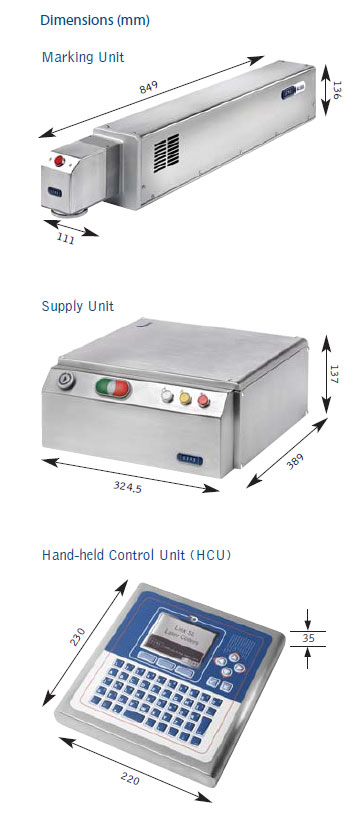

    Linx SL101 industrial LASER coder dimensional drawing
  • Linx SL101 Industrial LASER Coder Dimensional Drawings
