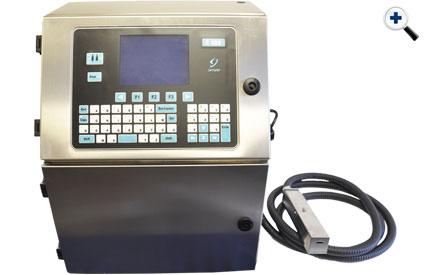

Saturn S-480 Industrial Inkjet Coder

The Saturn S-480 Series industrial inkjet printer is an excellent, economical choice for coding and marking onto various types of products. The S-480 continuous inkjet coder provides a high level of reliability with it's automatic nozzle flush system, IP54 rated stainless steel cabinet and long lasting, maintenance free airless pump design.
View Inkjet Coding Video

Saturn S-480 Inkjet Coder Features

  • Automatic bidirectional nozzle cleaning , automatic on/off button
  • Continuous printing, easy to start up, easy to use
  • Friendly operation of interface
  • Message can be reversed or inverted; locate any point to edit within edit area
  • Performance
  • General Features
  • Programming
  • Input/Output
  • Downloads/PDFs
  • Dimensionals
  • User-defined fonts, graphics, logo, and 2D code printing
  • Serial numbers, random serial number, shift code, clock printing
  • Time sets to hours, 4 clocks could be inserted simultaneously at most
  • Julian Date clock printing
  • Memory of over 1000 messages; Expanding by USB-disk
  • USB connector, easy to transfer data and updating
  • Automatci viscosity adjustment control, Replenish fluid without printer stopped
  • Print quantity counter and on-board diagnostics
  • Automatically display faults and warnings
  • Save and recall messages
    Working Conditions
  • Power Supply: 100-220V/50-60 Hz
  • Working Temperature: 5-45°C (Recommended working temperature)
  • Working Humidity: 30-90% (non-condensing)

    • Consumables
  • Ketan brand consumables, multi-options of inks
  • Speciality inks available - consult Ketan representative

    • Printhead & Umbilical
  • Square printhead structure with double solenoids
  • 3 meters umbilical standard

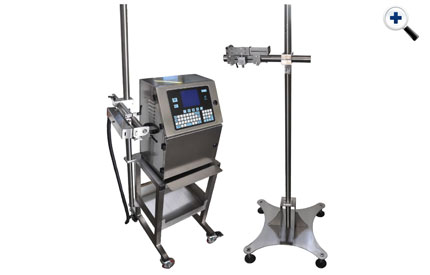

    • Accessories
  • Product Sensor
  • Printhead Stand
  • Maintenance kit
  • Printer Cart
  • Positive Air Kit
  • Font Option: 5×5, 5×7, 7×9, 10×16, 12×16, 16×24, 12×12, 16×16
  • Message output: 1-15mm, 1-4 lines, and characters could be bolded 9 times
  • Message Width: Maximum 6000 rows per second
  • Single Line Speed: Maximum 255 meters per minute.
    External Ports
  • Photocell, encoder, and lampstack (status lights)
  • USB port
  • RS232 port, connecting to other inkjet printer, computer, or IPC
    Saturn S-480 Industrial Small Character Inkjet Coder Spec Sheet
  • Saturn S-480 Industrial Small Character Inkjet Coder Spec Sheet

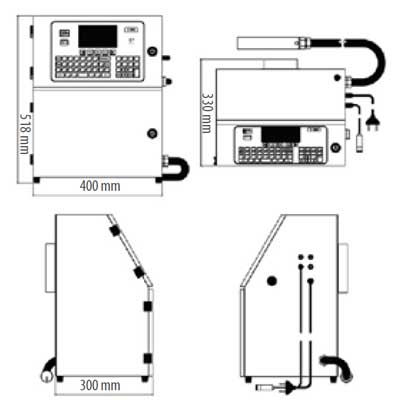

    Saturn S-480 dimensional drawing
  • Saturn S-480 Inkjet Coder dimensional drawings
